Main Feature:

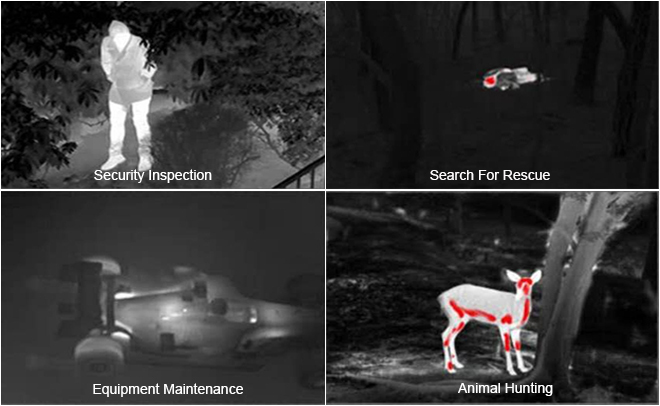

Helmet mounted thermal imager has various color palettes such as black-hot, white-hot, target highlight, that can be used for outdoor night vision, hunting, rescue and enforcement. For outdoor night vision, it can see the animals in darkness, fog, rain, and even other harsh conditions. For hunting, it can help recognize, identify, and locate the target in different environments by various color palettes and modes. For rescue and enforcement, it is light and small to be mounted on the helmet for long time, freeing your hands to rescue and enforce, while multiple display modes improve searching efficiency.
Main Application:

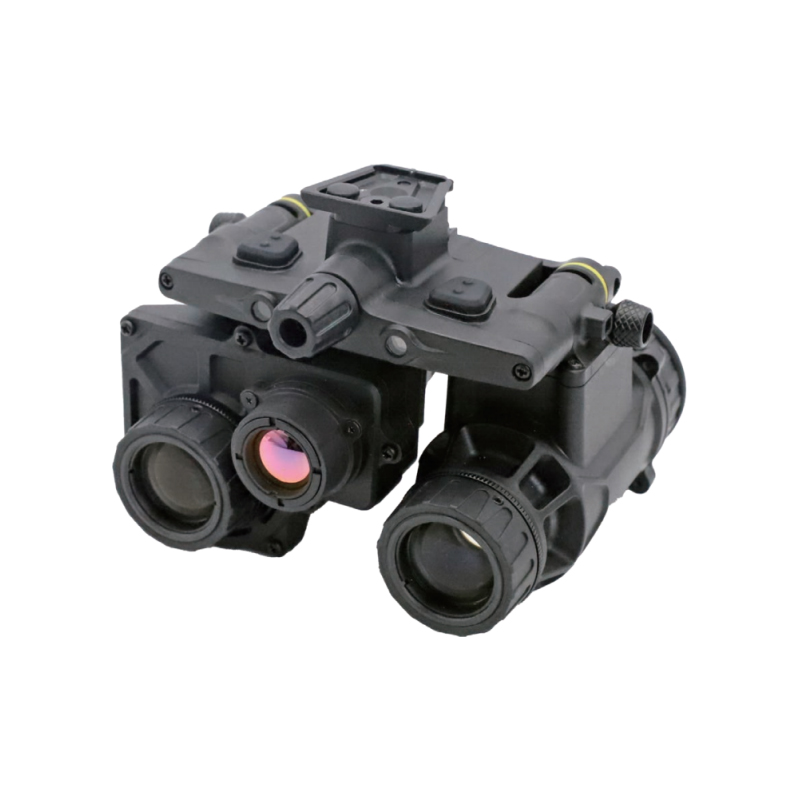

Helmet mounted thermal imager combines I² and thermal imaging technologies to make up for the shortcomings of the former in detecting targets, suitable for a wider range of applications. Taking the advantages of thermal imaging and I², helmet mounted thermal imager makes targeting more quickly and clearly. Thanks to its small size, it can be mounted on the normal helmets to free your hands in outdoor enforcement and rescue.
Main Parameters
Detector Type | Uncooled Infrared |
Resolution | 256× 192/ 384× 288 |
Pixel Pitch | 12μm |
Detector Frame Rate | 50Hz |
Spectral Range | 8~ 14μm |
NETD | ≤50mK@25℃ ,F# 1.0 |
Typical power consumption@25 ℃ with analog video expansion board |
Steady-state power consumption about 430mW ; Max. peak power consumption about 1.03W |
Data Output | With analog video expansion component: PAL 25Hz |
Communication Interface | UART |
Dimension | 18mm* 19mm |
User Connector | With analog video expansion component: Molex 533980571 |
Operating Temperature Range | -20℃ ~ +60℃ |
If you need any other thermal core modules or imager, please contact us freely.
