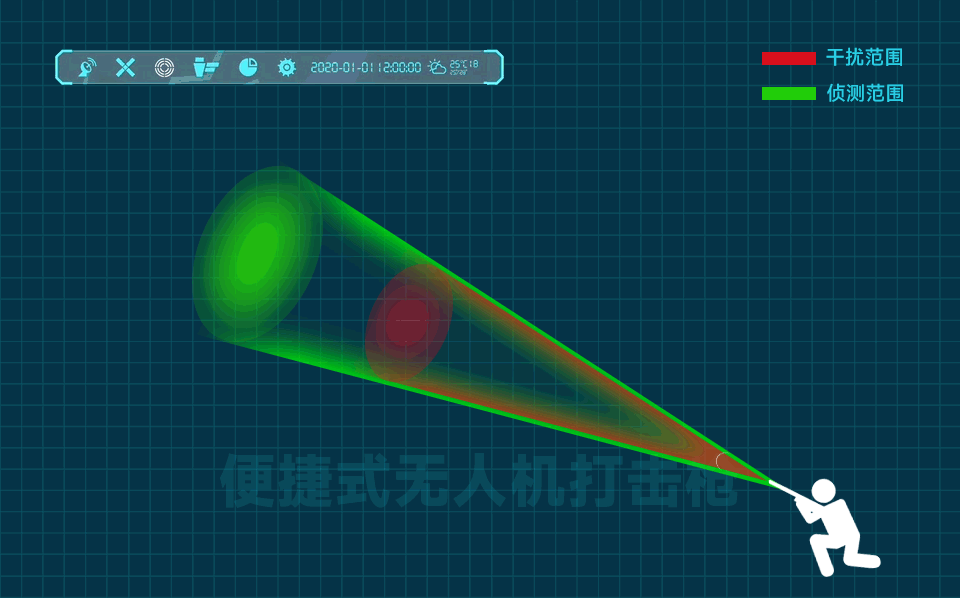

Working Principle: The anti-drone gun integrated gun detection terminal uses the radio spectrum monitoring system to passively intercept the image transmission signal and remote control signal between the UAV and the remote control to achieve passive detection of the UAV. The strike end transmits high-power interference signals in the same frequency band to the UAV to suppress the control signal, interfere with the UAV's data link and positioning system, and cut off the communication and navigation signals between the UAV and the remote controller. It forces the drone to hover in place, automatically land or return, effectively preventing the drone from entering the defense zone and ensuring the safety of low-altitude airspace.
Flexible, Portable and Mobile Deployment
The Anti-drone gun integrated reconnaissance gun adopts a portable design and can be operated by a single person. It can be quickly deployed to public security, power systems, anti-terrorism fields, military locations, aviation airports, prison guards, event sites, breeding farms, etc. In strategic locations, multiple devices can be deployed in a dispersed manner and can also be used in conjunction with other UAV countermeasures and defense equipment. We are committed to tailoring competitive integrated intelligent solutions based on the different project needs of each customer, from early project consultation and overall product planning, to program design, selection and configuration, to engineering construction, to help customers Get better protection effect.
Main Parameters
Product Name | Anti-drone & Anti-UAV Bag |
Strike End | |
Interception Method | Forced return, forced landing, hovering, image transmission interference |
Interference Frequency Band ( Six Channels ) | 800MHZ , 900MHZ , 1.2G , 1.5G(GPS/GLONASS/ Beidou ) , 2.4G , 5.8G |
Support Frequency Band | CH1:840-890MHz--20W Optional |
CH2:890-930MHz--20W Optional | |
CH3:1180-1280MHz--20W Optional | |
CH4:1550-1620MHz--20W Optional | |
CH5:2400-2500MHz--20W Optional | |
CH6:5175-5850MHz--20W Optional | |
Interference Distance | Open land ≥1500 meters |
Antenna Type | Built-in directional antenna |
Antenna Gain | 9dB |
Antenna Angle | 60 degrees |
Single Channel Power | 50W |
Power Supply | 28V/7500mAh, external charger |
Operation Method | One-hand or two-hand operation, six frequency bands can be turned on at will. Note: detection and interference cannot be turned on at the same time |
Heat Dissipation Method | Air cooling |
operating Hours | ≤50 minutes |
Operating Temperature | -20 ℃ ~+55 ℃ |
Relative Humidity | 80%RH |
Device Size | Length 850* Width 200* Height 130mm |
Device Weight | About 8.3Kg |

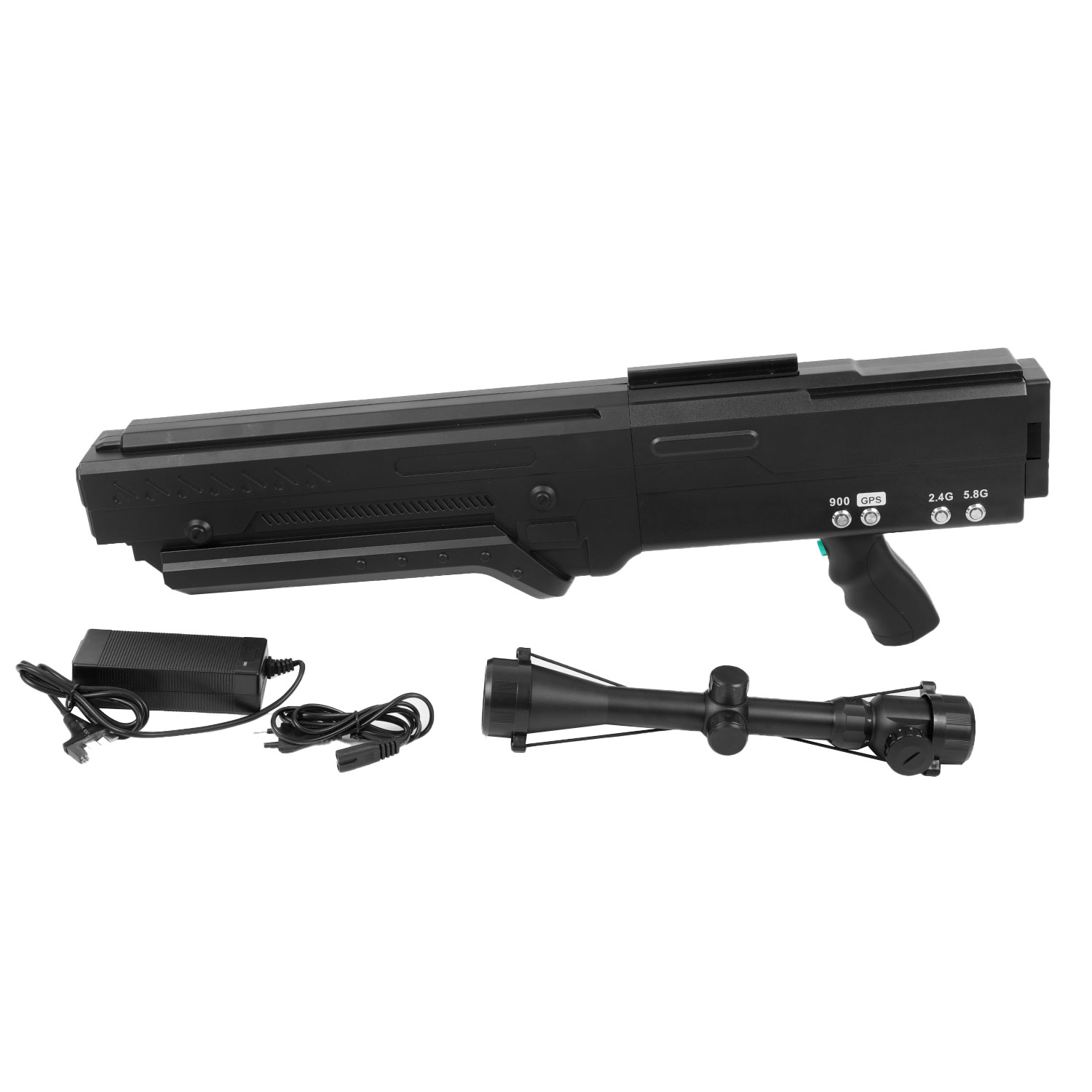

Expand Functions | Equipped with standard rails for installing sights, night vision devices, law enforcement recorders, etc. |
