Working Principle

Security surveillance radar mainly consists of 4 direction-finding radar arrays, height-finding radar array, turntable and power distribution control box. The radar phased array system (azimuth phase scan + elevation phase scan) technology is a method that uses phase Control the antenna technology that enables beam scanning. This technology uses the phase control element in the phased array antenna to precisely control the phase of each radiating unit, thereby achieving beam scanning in both azimuth and elevation directions.

Production Introduction

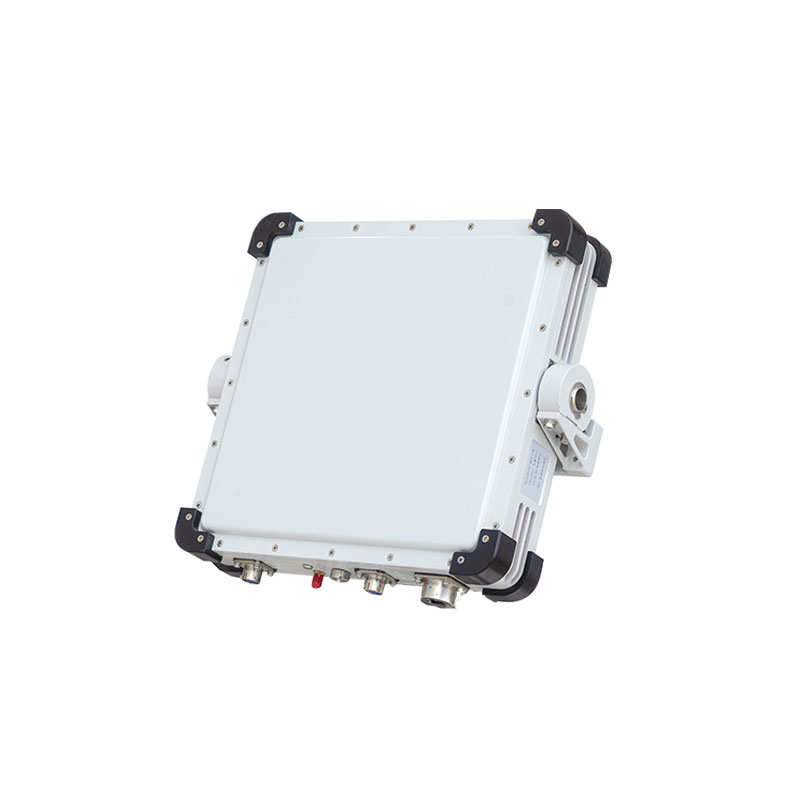

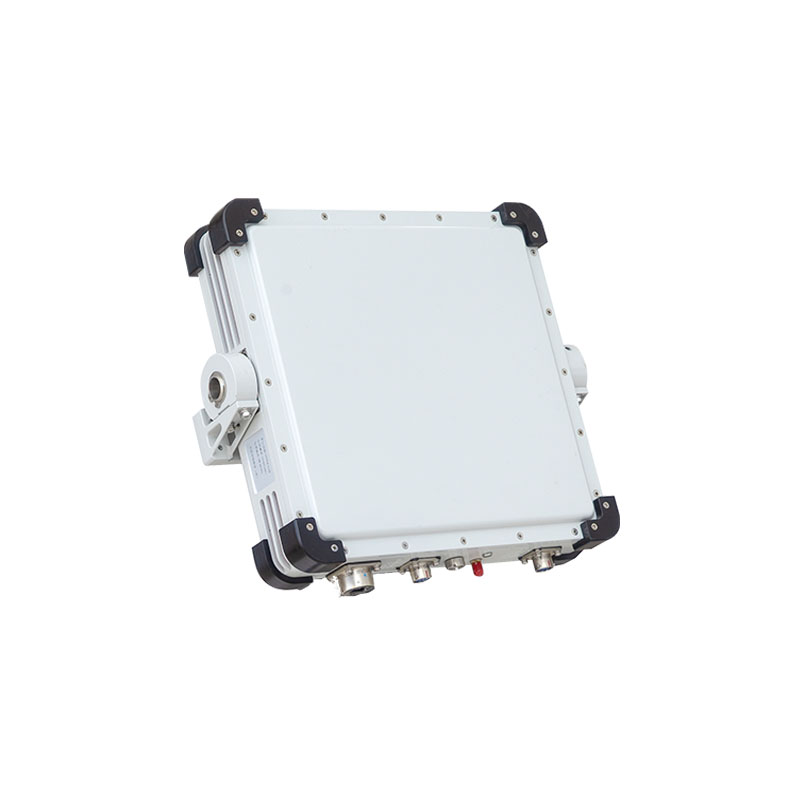

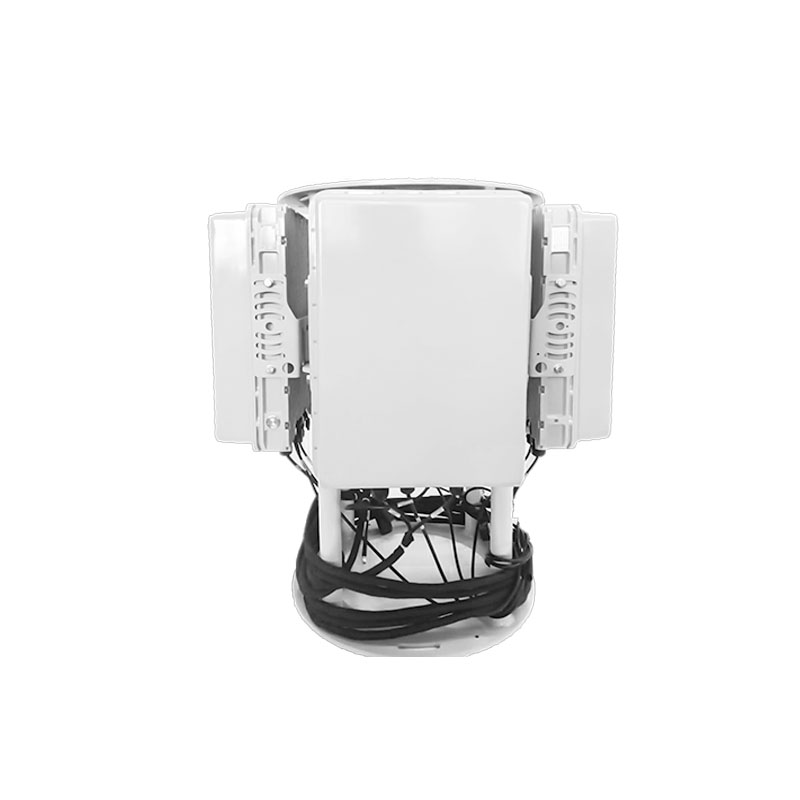

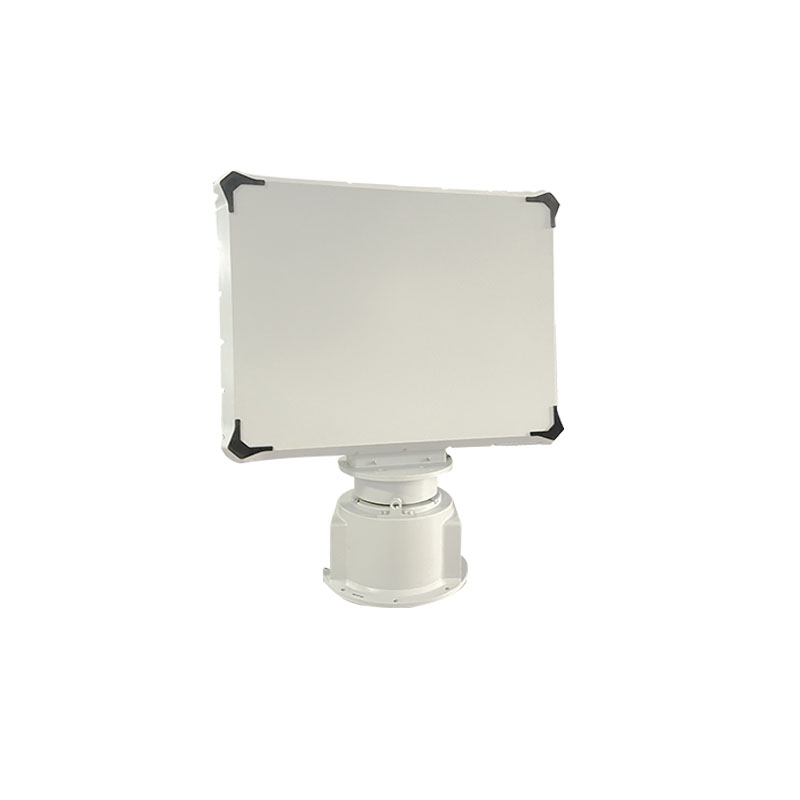

The security surveillance radar mainly consists of 4 direction-finding radar arrays, 1 height-finding radar array, turntable and power distribution control box. The radar adopts C-band, phased array + azimuth phase scan + pitch phase scan technology system. It is used for the detection, warning and target indication of low-altitude drones and aircraft in key areas such as borders, airports, and military bases. It can accurately give the target's orientation, distance, altitude, speed and other track information. It is mainly used for Detection, warning and target indication of drones in the monitoring area provide real-time, accurate and continuous air conditions and target information for the monitoring system and provide security guarantee.
