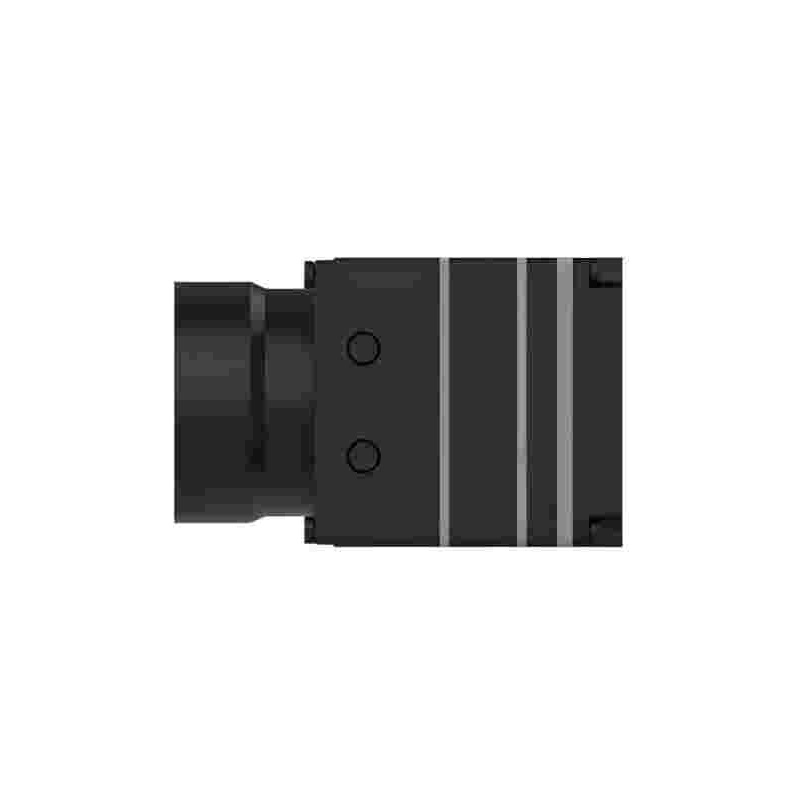

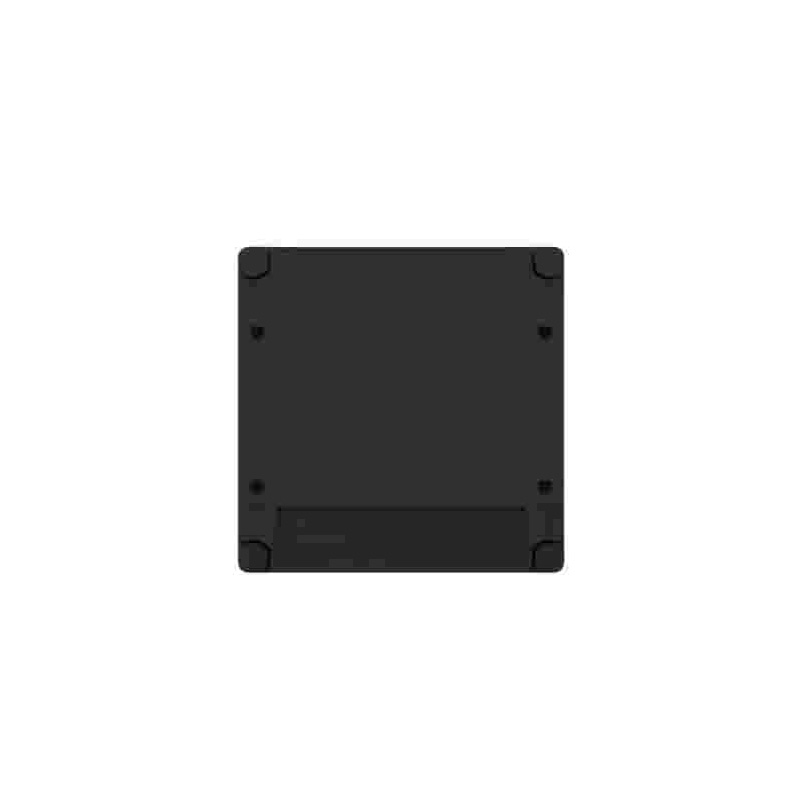

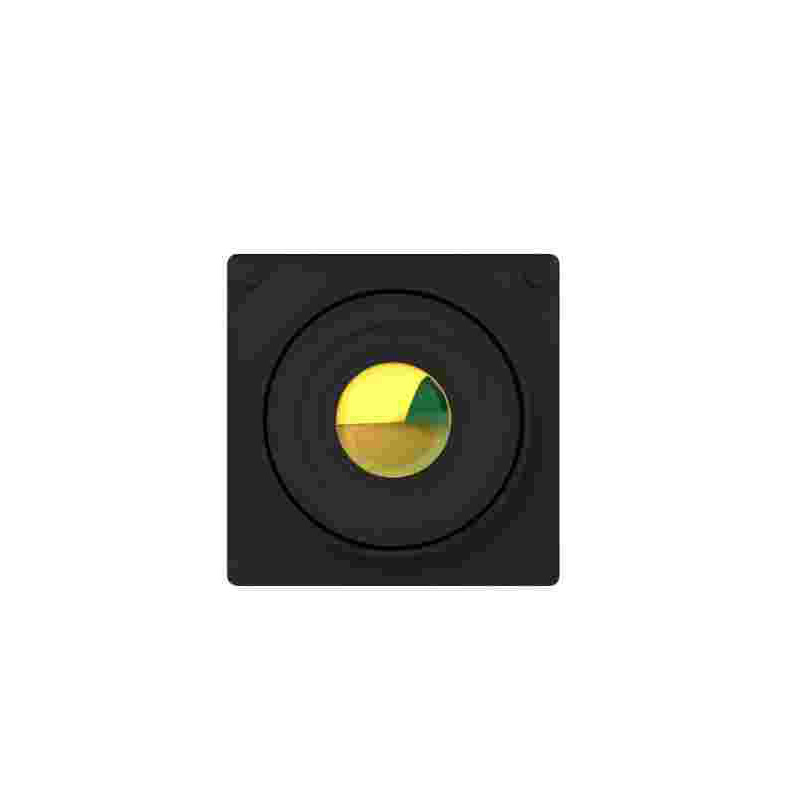

Main Feature:
1. Adopting self-developed Matrix Ⅳ High-Quality Image Algorithm, no fear of smoke and darkness, providing rich details;
2. The temperature measurement type is equipped with accurate and fast temperature measurement function, and the temperature measurement application can be carried out when the device is turned on;
3. Equipped with a leading programmable structure, flexible architecture, rich functions, and strong customization;
4. The latest generation of products has excellent SWaP performance, ultra-small size, ultra-low power consumption, and ultra-light weight, meeting the needs of infrared light weight and low cost.
Main Application:
Thermal imaging module or thermal core camera module is specially designed for the applications that are sensitive to size, weight and power consumption. It is small in size, light in weight and low in power consumption. It supports a variety of serial communication interface, video output interface and light weight infrared lens. It is suitable for miniaturized handheld devices, enhanced night vision goggles (ENVG), UAVs, FPV,Drone, unmanned vehicles , thermal imaging telescope, thermal imaging night vision telescopes, helmet night vision equipment, light unmanned aerial vehicle systems and a number of integrated photoelectric systems. At the same time, it can meet the product development needs of photoelectric pod, on-board application and sightand multi spectral systems, which supports thorough thermal image solution. The radiometric products can be used in industry measurement, power station measurement, security &surveillance measurement, and machine vision etc.
Main Parameters
Product Model | LG 640*512 |
Performance Indicators | |
Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
Array Format | 640×512 |
Pixel spacing | 12μm |
Response band | 8~14μm |
MRTD | ≤250mK |
NETD | <20mK |
Frame rate | 25/50Hz |
Image Adjustment | |
Polarity | White Hot/Black Hot |
Fake Color | support |
Electronic zoom | 1.0~4.0× continuous zoom (step length 0.1) |
Image Mirroring | Up and down/left and right/diagonal |
Crosshairs | Show/Hide/Move |
Character Overlay | support |
No perceptual correction | |
Image Processing | |
Digital filtering noise reduction | |
Digital detail enhancement | |
Power Supply | |
Power supply range | 6~18VDC |
Typical power consumption @25℃ (excluding user expansion components) | 900mW |
Power protection | User expansion components support overvoltage, undervoltage, and reverse connection |
interface | |
Simulation Video | 1 PAL or 1 NTSC |
Digital Video | LVDS/LVCMOS/BT.656 |
User interface board supports customized requirements | |
Serial communication interface | UART, RS232, RS422 |
Press the key | 4 buttons |
Optical Lens | |
Focus Type | Athermalization |
Horizontal field of view/focal length | |
89°/4.1mm | |
70°/5.8mm | |
48°/9.1mm | |
33°/13mm | |
22°/19mm | |
17°/25mm | |
12.5°/35mm | |
8°/55mm | |
5.9°/75mm | |
4.4°/100mm | |
Focus Type | Continuous zoom |
Horizontal field of view/ focal length | |
5.9°~17.6°/25~75mm | |
4.4°~22°/20~100mm | |
2.9°~14.7°/30~150mm | |
Mechanical Parameters | |
Dimensions (without lens and extension components) | 29.5×29.5×29.5mm |
Weight (without lens and extension kit) | 35g±3g |
Environmental Parameters | |
Operating temperature range | -40℃~+85℃ |
Storage temperature range | -50℃~+90℃ |
Vibration resistance | 10.2g, random vibration, all axes |
Shock resistance | Half sine wave 200g 6ms, five times in each of three axes and six directions |
If you need any other thermal core modules, please contact us freely.
