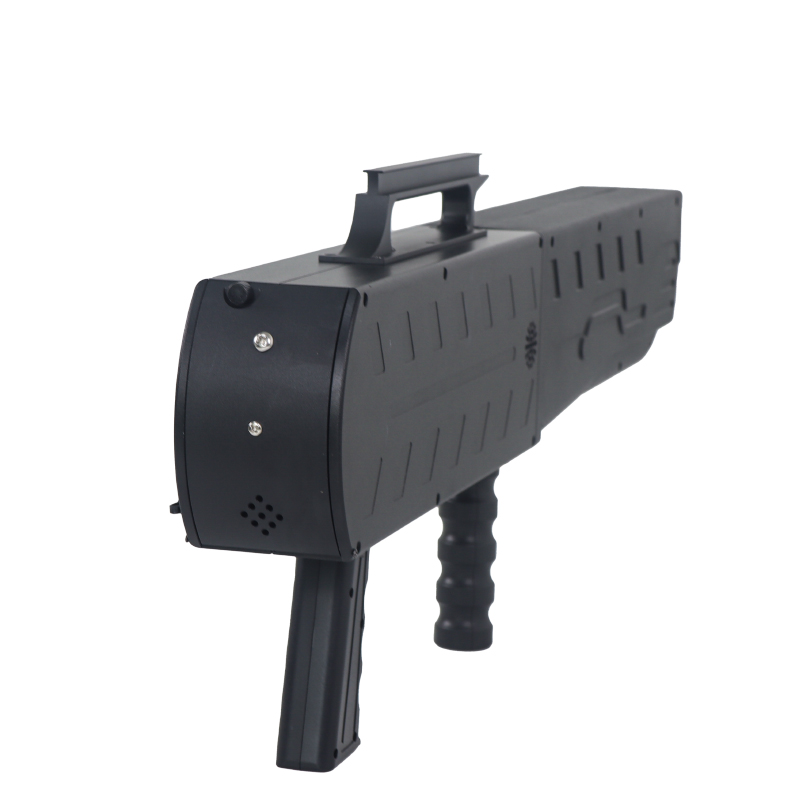

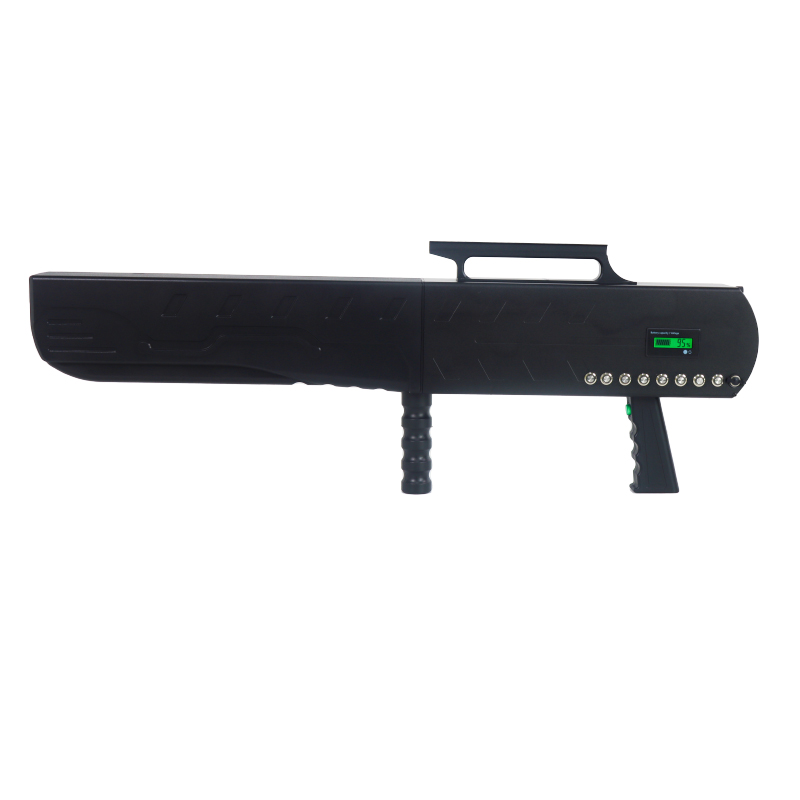

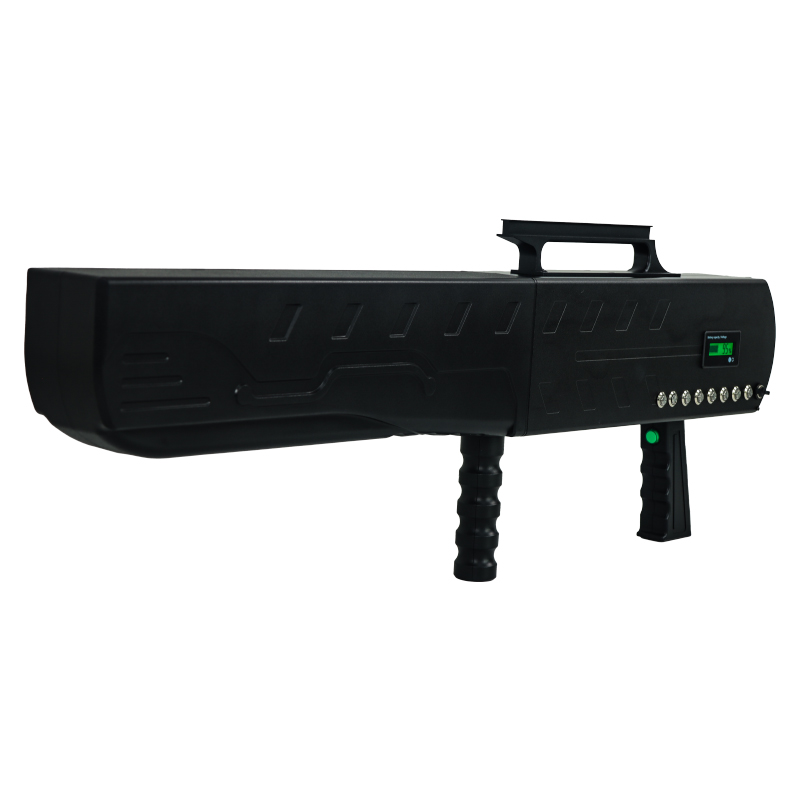

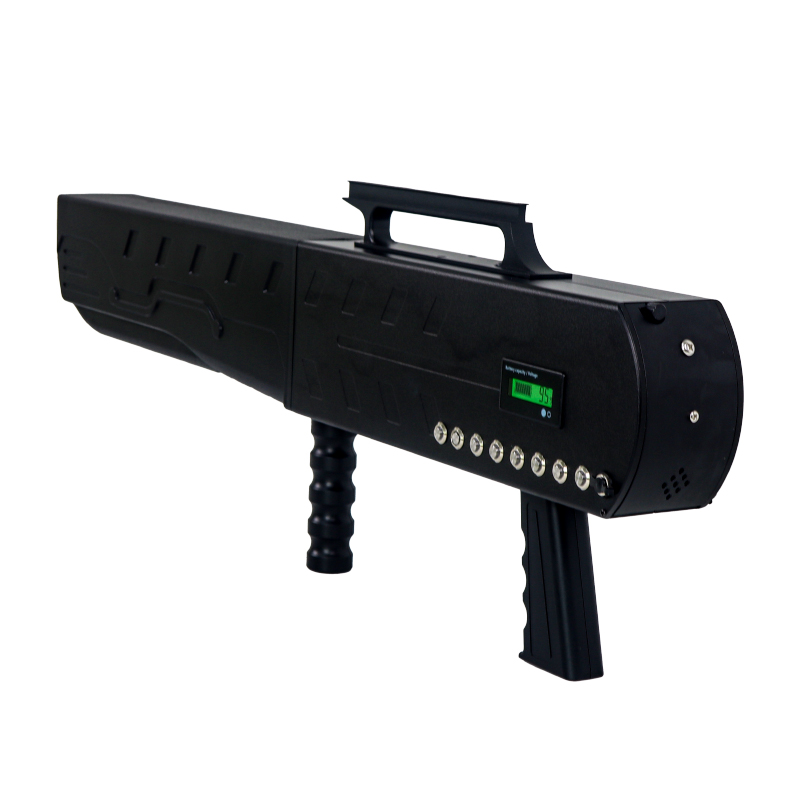

OEM ODM SKD SKD 8 Bands Anti-drone Jammer Gun

*Product Functions: The interference end suppresses the control signal by transmitting high-power interference signals in the same frequency band to the UAV, allowing remote control of the UAV. Distance cuts off the connection between the drone and its controller, forcing the drone to land, hover, or return home.

*Intervention Distance: Interference distance ≥ 1500 meters.

*Expansion Capabilities: The equipment is equipped with standard rails that can be installed with sights, night vision devices, law enforcement recorders, etc.

*Applicable Scenarios: The device adopts a portable design and can be operated by a single person. It can be quickly deployed to important places in public security, power systems, anti-terrorism fields, military locations, aviation airports, prison guards, event sites, breeding farms, etc.

Working Principle: The anti-drone gun integrated gun detection terminal uses the radio spectrum monitoring system to passively intercept the image transmission signal and remote control signal between the UAV and the remote control to achieve passive detection of the UAV. The strike end transmits high-power interference signals in the same frequency band to the UAV to suppress the control signal, interfere with the UAV's data link and positioning system, and cut off the communication and navigation signals between the UAV and the remote controller. It forces the drone to hover in place, automatically land or return, effectively preventing the drone from entering the defense zone and ensuring the safety of low-altitude airspace.

Applications: The Anti-drone gun integrated reconnaissance gun adopts a portable design and can be operated by a single person. It can be quickly deployed to public security, power systems, anti-terrorism fields, military locations, aviation airports, prison guards, event sites, breeding farms, etc. In strategic locations, multiple devices can be deployed in a dispersed manner and can also be used in conjunction with other UAV countermeasures and defense equipment. We are committed to tailoring competitive integrated intelligent solutions based on the different project needs of each customer, from early project consultation and overall product planning, to program design, selection and configuration, to engineering construction, to help customers Get better protection effect.

Main Parameters:

Product Name

Anti-drone & Anti-UAV Bag

Strike End

Interception Method

Forced return, forced landing, hovering, image transmission interference

Interference Frequency Band

( Six Channels )

800MHZ , 900MHZ , 1.2G , 1.5G(GPS/GLONASS/ Beidou ) , 2.4G , 5.8G

Support Frequency Band

CH1:840-890MHz--20W Optional

CH2:890-930MHz--20W Optional

CH3:1180-1280MHz--20W Optional

CH4:1550-1620MHz--20W Optional

CH5:2400-2500MHz--20W Optional

CH6:5175-5850MHz--20W Optional

Interference Distance

Open land ≥1500 meters

Antenna Type

Built-in directional antenna

Antenna Gain

9dB

Antenna Angle

60 degrees

Single Channel Power

50W

Power Supply

28V/7500mAh, external charger

Operation Method

One-hand or two-hand operation, six frequency bands can be turned on at will. Note: detection and interference cannot be turned on at the same time

Heat Dissipation Method

Air cooling

operating Hours

≤50 minutes

Operating Temperature

-20 ℃ ~+55 ℃

Relative Humidity

80%RH

Device Size

Length 850* Width 200* Height 130mm

Device Weight

About 8.3Kg

Expand Functions

Equipped with standard rails for installing sights, night vision devices, law enforcement recorders, etc.
