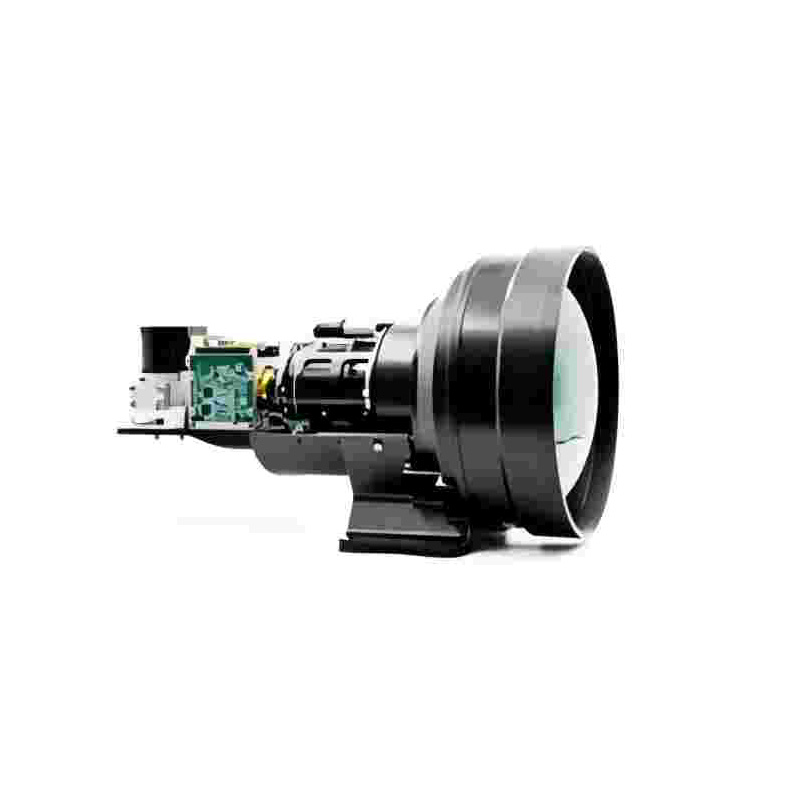

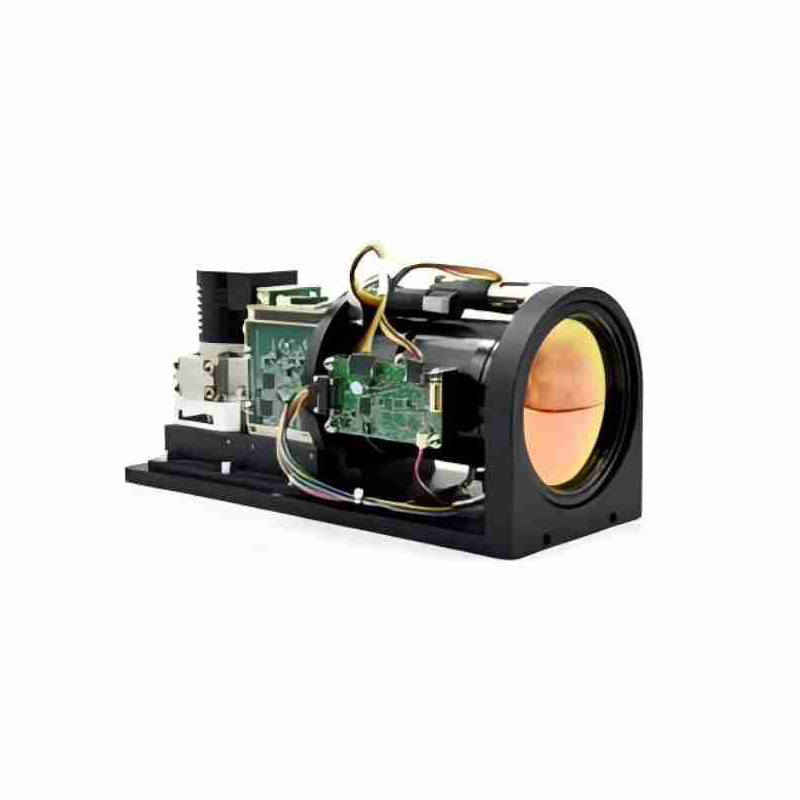

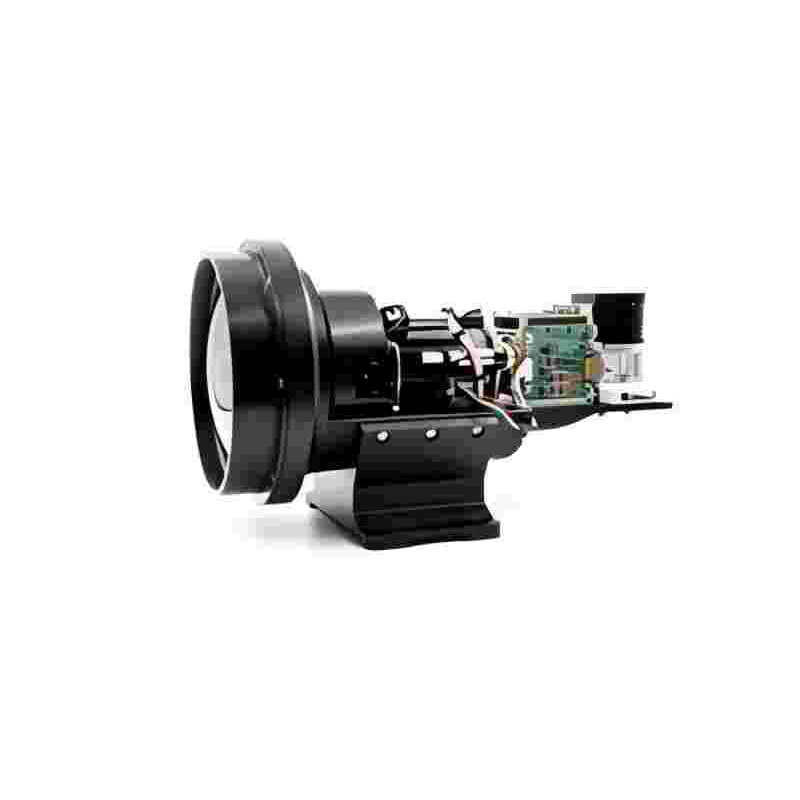

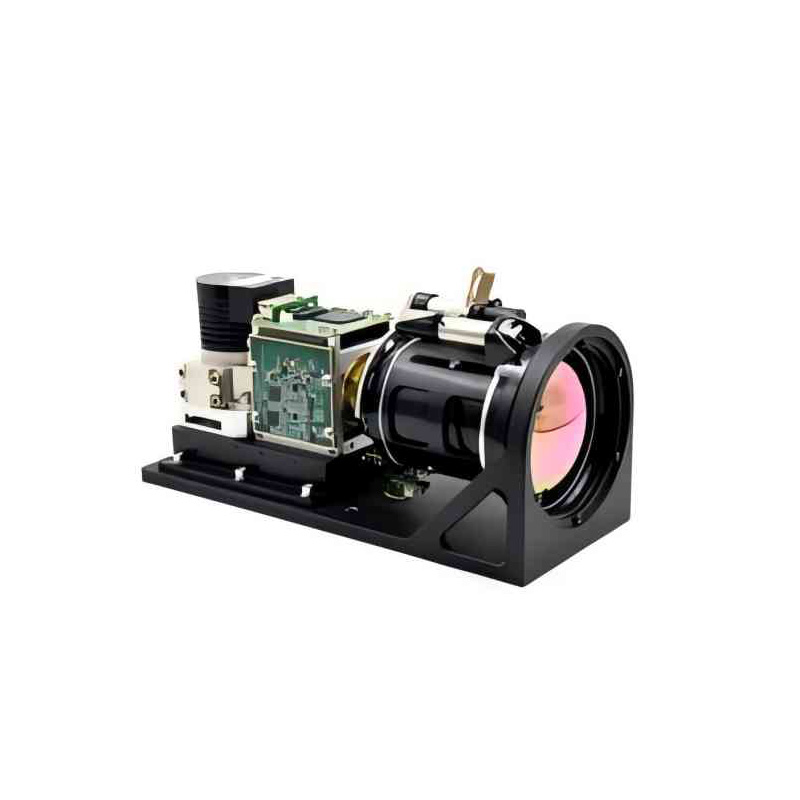

HgCdTe Detector MWIR Cooled Thermal Imaging Module For Application Urban Security, Railway Security, Border Security and Other Industries

lHigh performance to meet various future demands

Self-developed detector with high frame rate, high pixel, and high sensitivity. Its wide temperature measurement range (-20°C~ + 550°C) allows monitoring of industrial targets with high-temperature requirements.

lRich interfaces for wide application scope

It is compact, lightweight, and easy to install in space-limited areas, without load generated to the detected equipment. Standard USB interface is supported (optional), enabling fast data transmission and improving efficiency.

lHigh image quality

High-end detector provides high-definition thermal images. Professional germanium lens provides excellent infrared transmittance and contrast. Multiple lenses are optional to meet requirements in different scenarios. Multiple palettes meet requirements in different scenarios.


Main Feature:

1. Adopting self-developed Matrix Ⅳ High-Quality Image Algorithm, no fear of smoke and darkness, providing rich details;

2. The temperature measurement type is equipped with accurate and fast temperature measurement function, and the temperature measurement application can be carried out when the device is turned on;

3. Equipped with a leading programmable structure, flexible architecture, rich functions, and strong customization;

4. The latest generation of products has excellent SWaP performance, ultra-small size, ultra-low power consumption, and ultra-light weight, meeting the needs of infrared light weight and low cost.

Main Application:

Thermal imaging module or thermal core camera module is specially designed for the applications that are sensitive to size, weight and power consumption. It is small in size, light in weight and low in power consumption. It supports a variety of serial communication interface, video output interface and light weight infrared lens. It is suitable for miniaturized handheld devices, enhanced night vision goggles (ENVG), UAVs, FPV,Drone, unmanned vehicles , thermal imaging telescope, thermal imaging night vision telescopes, helmet night vision equipment, light unmanned aerial vehicle systems and a number of integrated photoelectric systems. At the same time, it can meet the product development needs of photoelectric pod, on-board application and sightand multi spectral systems, which supports thorough thermal image solution. The radiometric products can be used in industry measurement, power station measurement, security &surveillance measurement, and machine vision etc.

Main Parameters

Model

FX640E

Detector

HgCdTe

Resolution

640×512

Pixel Size

15μm

Spectral Band

3.7~4.8μm

NETD

≤25mK

Default Frame Rate

25Hz

Maximum Frame Rate

50Hz

Starting Time

≤7.5min

Lens

Support the continuous zoom lens of 20× or above

Brightness/Contrast Adjustment

Manual/Automatic

Palettes

White-hot/Black-hot/Palette

Reticle

Display/Blank/Move

Digital Zoom

1×~8×

Image Processing

Non-uniformity correction, digital filter noise reduction, digital detail enhancement

Image Mirroring

Horizontal/Vertical/Diagonal

Service Voltage

20~36VDC

Power Consumption@25°C/24V

Peak power consumption ≤ 24W, stable power consumption ≤ 20W

Analog Video

PAL system/NTSC system

Digital Video

Camera Link

Serial Communication Interface

RS422

External Synchronization

RS422 or LVTTL

Operating Temperature

-40°C~+60°C

Storage Temperature

-40°C ~+70°C



If you need any other thermal core modules, please contact us freely.
